As soon as upon a time and for a couple of months, I rode a pushrod 500 AJS single. A part of its beginning drill was to be sure that its oil pump had not misplaced prime (It wouldn’t pump if the oil leaked out of it). Take away the cap from the oil tank to disclose the open finish of the oil return line simply inside. Pull the compression launch, then rotate the engine with the kickstart lever till oil might be seen to return to the tank in little blorps. With oil return verified, you might proceed with retarding the spark (to stop kickback from damaging your leg or the arch of your foot), priming with the “tickler” atop the carburetor’s float bowl, then positioning the crankshaft at simply after high heart on the ability stroke to present your leg most time to whirl the 35-pound crank. With a level of abandon, throw your self into the air to come back down confidently on the lever. Visualize success.
The engine ought to begin, however many alternate options existed.
A favourite photograph from the Sixties reveals the late Arturo Magni, then head of MV’s roadrace crew, utilizing a camp range to preheat oil earlier than making an attempt to start out one of many crew bikes.
As we speak we’ve got multigrade oils which act skinny at cold-starting temperature, but retain enough viscosity for greatest lubrication as soon as sizzling. However with old-time single-grade racing oil—presumably castor-based—the hazard was that its excessive chilly viscosity would stop it from circulating as soon as the engine began, resulting in attainable scuffed pistons or valve tappets from lack of immediate oil circulation.
Preheating such single-grade oil lowered its viscosity sufficient to guarantee speedy circulation and lubrication of important elements.
One other photograph reveals the NSU crew within the early to mid-Fifties, utilizing a Luftwaffe-surplus engine heating unit (actually only a moveable hot-air furnace) to preheat the engines of its a number of crew bikes. Giant-diameter flex ducts carried sizzling air from the unit to the a number of bikes, the concept being to heat the elements till consumption tracts have been heat sufficient to vaporize gasoline, kind a fuel-air combination, and so begin simply. Systematic.
Trendy bike engines simply begin and run as a result of their digital fuel injection systems, having temperature sensors, mechanically modify gasoline supply for variations in air temperature. Flip the important thing and the engine begins. However in Sixties bike GP racing, every observe might need its personal official gasoline, which may be av-gas, which evaporates much less simply than pump fuel. Finest subsequently to start out with an engine pre-warmed by sizzling air or sizzling oil.
For a time after the approaching of digital gasoline injection, cold starting remained below human administration by use of a handbook chilly enrichment system generally known as a choke. It enriched the combination in the identical method as placing the palm of your hand over an open carburetor throughout cranking: Chopping off airflow on this crude method sucked in sufficient further gasoline to start out (a cold-start combination must be enriched as a result of the colder the air, the smaller the fraction of the gasoline it could actually evaporate). For beginning with a choke, you operated the choke lever, began the engine, after which steadily moved the lever because the engine warmed and increasingly of the gasoline delivered to it evaporated. For this reason engines being cold-started scent of uncooked gasoline: you’re smelling the unevaporated fraction that passes by means of the engine unburned. And because of this the EPA up there in Ann Arbor now desires the exhaust cat as shut as attainable to the engine’s exhaust ports—it desires the cat to gentle up immediately and burn that unevaporated fraction.
As we speak a mix of computerized enrichment and a throttle positioner or “variable consumption air leak” permits the gasoline system to each enrich for chilly beginning and to offer an preliminary excessive idle to stop tough working or stalling. Because the engine warms, you will note idle rpm lower because the system returns steadily to regular idle rpm.
A contemporary engine’s spark timing is ready without end by the connection between a hard and fast crankshaft place sensor and a set of poles hooked up to the crank and rotating with it. By figuring out crank place, the digital ignition system can fireplace the spark on the time known as out in a number of 3D spark maps carried in reminiscence. X and Y on these maps are the 2 essential variables “N” (engine rpm) and “Alpha,” the throttle angle. “Z,” the peak from that XY airplane, is the ignition timing in levels earlier than high lifeless heart (BTDC). Z is decided by working engines on the dyno and discovering the perfect worth for every mixture of X and Y. That information is saved in everybody’s ECU.

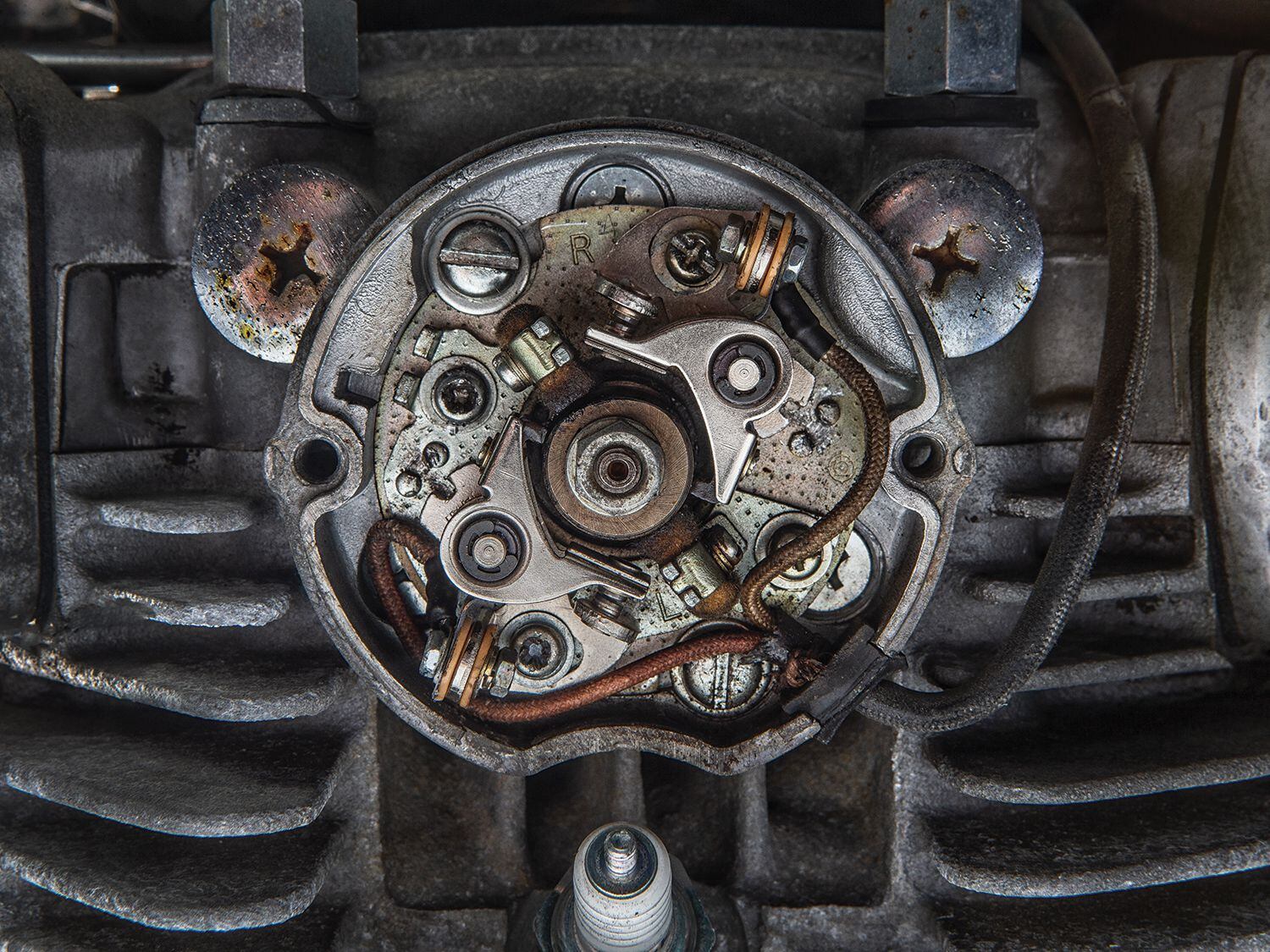

Till the approaching of such digital noncontact programs, the firing level was decided by a cam, bodily lifting a contact arm such that present flowing between two contacts or “factors” was mechanically lower off. As a result of put on naturally occurred between the cam and a plastic “rubbing block” that was a part of the contact arm, each thousand miles or so it grew to become essential to reset the contact hole and the purpose within the cycle at which the cam opened the factors. The proprietor or mechanic set the hole between the open factors using a “feeler gauge” (consisting of many skinny metal leaves, every of a unique marked thickness). Then the timing of factors opening needed to be reset to the right spec.
In lots of circumstances, the ignition cam was pushed by an “advance mechanism” that used centrifugal weights to permit timing for engine beginning to be retarded sufficient (occurring later within the cycle by a couple of levels) to stop kickback. As soon as began, with the engine accelerating into its energy vary, the centrifugal weights would fly outward towards their little return springs, shifting the cam to a extra superior place right for operation above idle.
One other refinement, extra typically used on automotive engines than on bikes, was “vacuum advance.” The smaller the throttle angle, the much less dense the fuel-air cost turns into (a “partial vacuum”), and the extra slowly it burns. If spark timing have been fastened, the consequence can be later prevalence of peak combustion strain—leading to poor gasoline mileage. Due to this fact an consumption vacuum sensor was offered (we used to see these on the edges of auto engine ignition distributors) that might advance ignition timing in response to excessive consumption vacuum.
As we speak these features are constructed into the spark maps of digital ignition programs.
One other a part of the 1,000-mile tuneup was inspection and regapping of the spark plugs. The gap between the spark plug’s heart wire and its floor electrode needed to be sufficiently small that the ignition’s power might soar the hole. Hours of operation, nevertheless, brought on the hole to develop as spark power evaporated steel from the extremely popular heart wire and floor. If the hole grew massive sufficient, spark blow-out and misfiring resulted.
In the course of the tuneup the plug hole(s) can be measured and reset to specification. Or, if the hole electrodes regarded nicely rounded off, the plug(s) would get replaced with new.
In fashionable ignition programs, hole erosion has been all however eradicated by limiting the present allowed to movement throughout the plug hole(s), and making the plug’s heart wire of a high-melting-point steel similar to iridium (spark plug electrodes have been platinum-tipped in World Struggle II–period massive plane piston engines).
All these modifications have added as much as the low-maintenance bike engines of the current.
Again when 98 % of bike engines have been air-cooled, oil modifications have been required extra incessantly. With air-cooling (and within the absence of a cooling blower) engine temperature goes up and down with the climate. Which means that cold-engine commuting permits combustion merchandise (moisture and acids) to construct up in engine oil, which by no means turns into sizzling sufficient to boil them away. The warmer the climate, the warmer the oil—maybe sizzling sufficient to prematurely degrade the temperature-sensitive components in it. In both case, the “treatment” was extra frequent oil modifications.
Trendy liquid-cooled engines function at fixed temperature, taking the sharp edges off the issues described within the earlier paragraph. Oil lasts longer.
Much less wrenching = extra time for social media. Progress?
