Road automobiles or road/strip automobiles current a number of points on the subject of quarter mile chassis setup. They’re probably not full-on race automobiles they usually’re probably not supposed (or arrange) to burn corners. In lots of instances, they don’t have the total drag race “bundle” comparable to a 4 hyperlink or ladder bars. Some may need bolt-on traction bars. Some may need single or double adjustable shocks. Some may need an Anti-Roll Bar (ARB). Some may need particular springs.
The author’s private automotive falls into the above “may need” classes.
My 1970 Chevy Nova has what quantities to a ahead biased rear spring (AFCO Racing’s modified version of a traditional Mopar Super Stock spring). It doesn’t have another type of traction gadget. It has customized Santuff 200 pound charge springs on the nostril. It has double adjustable AFCO Racing shocks. And it has a homebrew ARB on the rear (made up with components of a Hotchkiss kit and plenty of heavy obligation items from SummitRacing.com, like hyperlinks, rod ends, rear housing mounts, and so on.)
There’s a distinction between a traditional rear sway bar and an ARB. A standard sway bar usually has two finish hyperlinks (on all sides) connected to a decrease trailing arm of some kind. An ARB will at all times have two hyperlinks connected to the chassis. In consequence, when forces (comparable to physique roll because the automotive launches) act upon an ARB, it can at all times switch these masses on to the chassis, not again to the suspension.
When establishing the rear suspension on a automotive with an ARB, the entire varied settings (comparable to 4 hyperlink, ladder bar, triangulated 4 hyperlink, bolt-on traction bar, and so on.) should be completed with the ARB disconnected. ARB setup and shock setup are the final issues completed.
Most race automobiles are arrange on 4 wheel electronic vehicle scales. Because the suspension changes are completed, you possibly can really see adjustments in nook weight. I don’t personal (or have a necessity for) a set of 4 wheel scales. However a tape measure can generally present adjustments in trip top throughout chassis adjustment.
Methods to Do a Baseline Chassis Setup at House
With that out of the way in which, right here’s how I do my chassis setup.
The very first thing to do is to discover a degree location in your store flooring. Some outlets like mine have flooring drains, which suggests the ground slopes barely in sure spots. In my case, the 2 outer bays have drains. The center of the store doesn’t, and right here, the ground is degree. When you discover a degree location, set the tire strain entrance and rear.
At this level, the automotive should be raised up so you possibly can achieve entry to the suspension elements. When lifting the automotive, make certain the suspension is loaded. I merely use a set of axle stands underneath the rear finish housing and ramps underneath the entrance tires. Ideally, two units of ramps would make it simpler (one set underneath the entrance tires; one set underneath the rear tires), however I don’t have that luxurious. As soon as within the air, the automotive ought to be bounced a number of instances entrance and rear with a purpose to settle the suspension. It’s a good suggestion to double examine to make sure the automotive is degree. Degree facet to facet, entrance and rear (not entrance to rear) is what you’re on the lookout for.
Getting the working weight distribution is subsequent. Ballast is used to copy the load of gasoline, weight of unattached components (in my case the exhaust system together with the hood), gasoline and different fluids, and naturally, the motive force. There are lots of issues you need to use for ballast. I take advantage of water softener salt baggage and weight lifting weights as a result of I’ve them available. Sand baggage are an alternative choice.
Gasoline weighs roughly 6.2 kilos per U.S. gallon, whereas water weighs roughly 8.4 kilos per U.S. gallon, and oil suggestions the scales at roughly 7.0 kilos per U.S. gallon. “Roughly” is used right here, as a result of the weights can differ on account of respective gasoline mixes, temperature, and so forth.

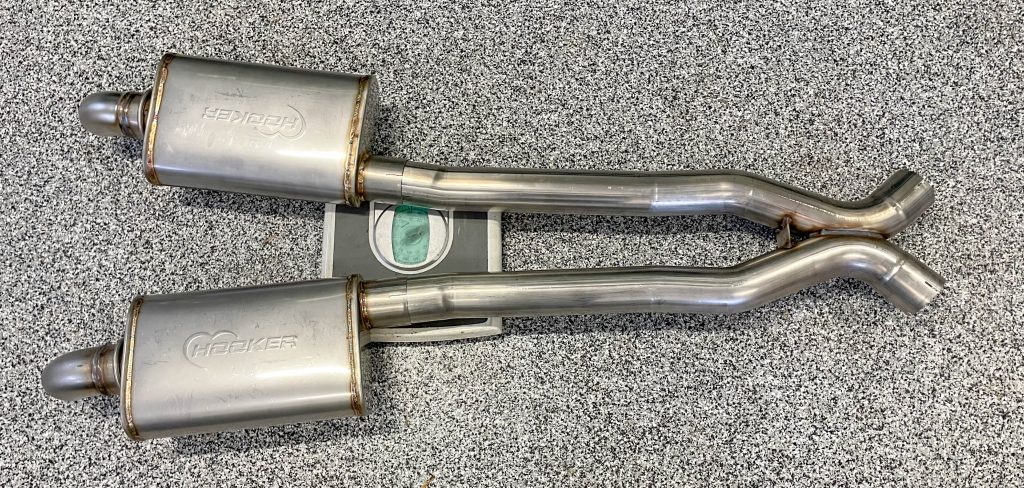

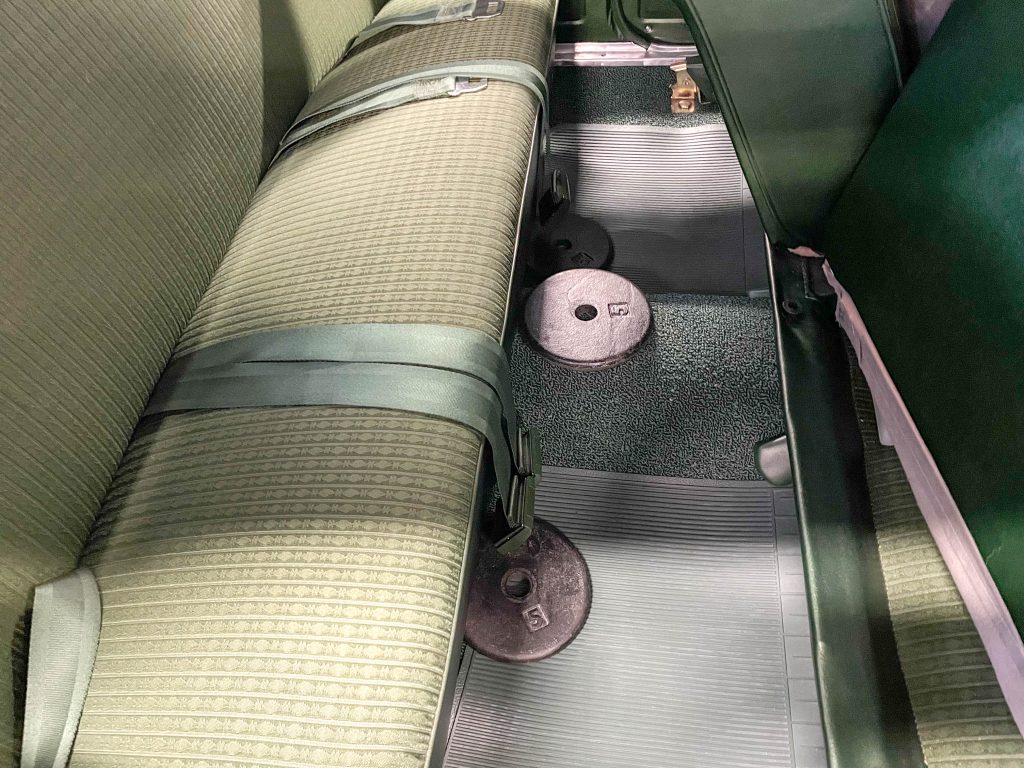

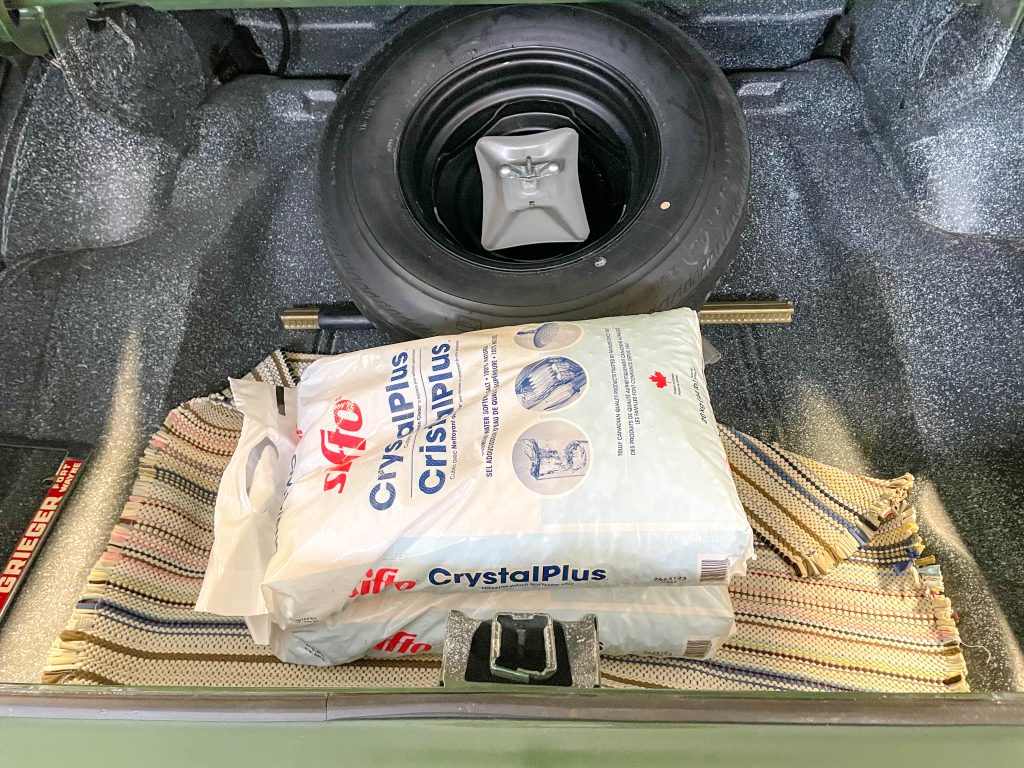

In my case, I positioned two baggage of softener salt within the heart of the trunk to simulate 14 U.S. gallons of fuel, 15 kilos of weight throughout the again seat flooring to simulate the exhaust system items not connected, and one bag of softener salt on the engine to make up for the lacking inventory hood. I additionally positioned 4 baggage of softener salt and 20 kilos of additional weight within the driver’s compartment to simulate my physique weight. In the long run, the thought is to get the automotive ballasted to simulate true working weight as shut as doable.

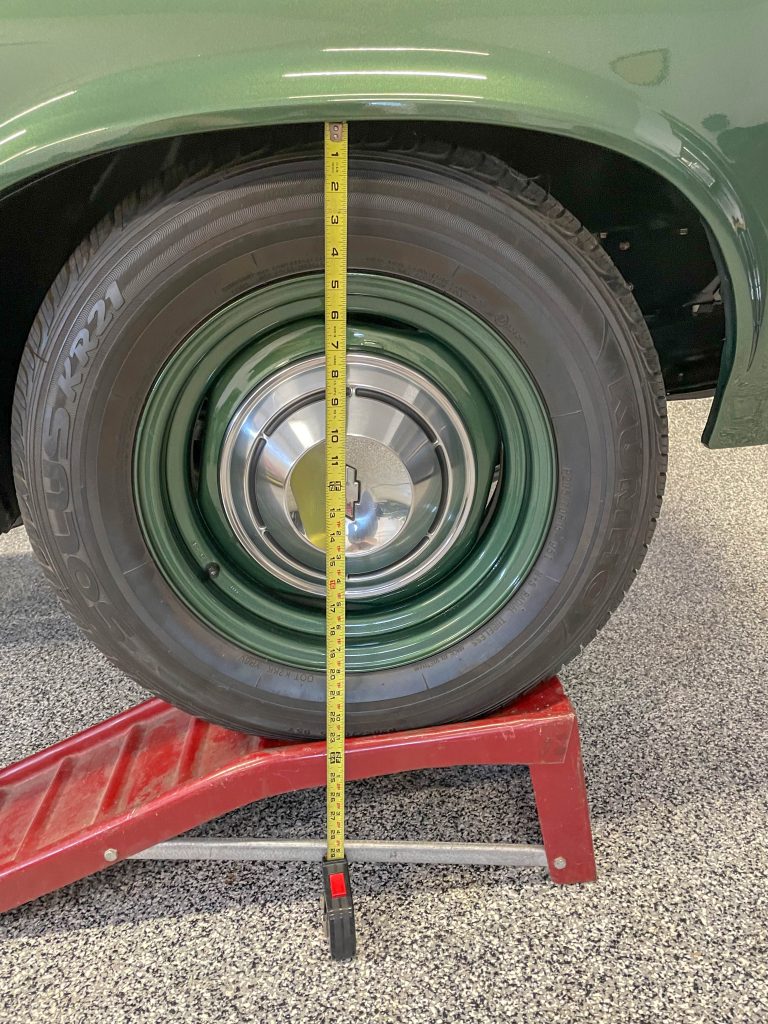

As soon as within the air, I double checked to make sure the ARB was disconnected. I additionally double checked to make sure the sway bar bushings have been lubricated (mine have a zerk becoming on every bushing). Then I measured from every wheel effectively lip to the store flooring to ascertain a baseline “trip top.”
When you have any form of traction gadget, adjustable 4 hyperlink, adjustable ladder bar or adjustable trailing arms, that is the time to regulate them. Most producers gives you a baseline adjustment setting for these elements. In my case, there isn’t a adjustment obtainable within the Tremendous Inventory type springs.
Subsequent up, I arrange the shocks. I began with the baseline setup from AFCO which works out to the compression knob (on the shock physique) set 18 clicks from full stiff. On the fronts, I stiffened the compression 4 extra clicks. Each the entrance and rear rebound adjusters (discovered on the top of the shock shaft) have been set 20 clicks from full stiff. As soon as in use, I can play with the adjusters from this level on.

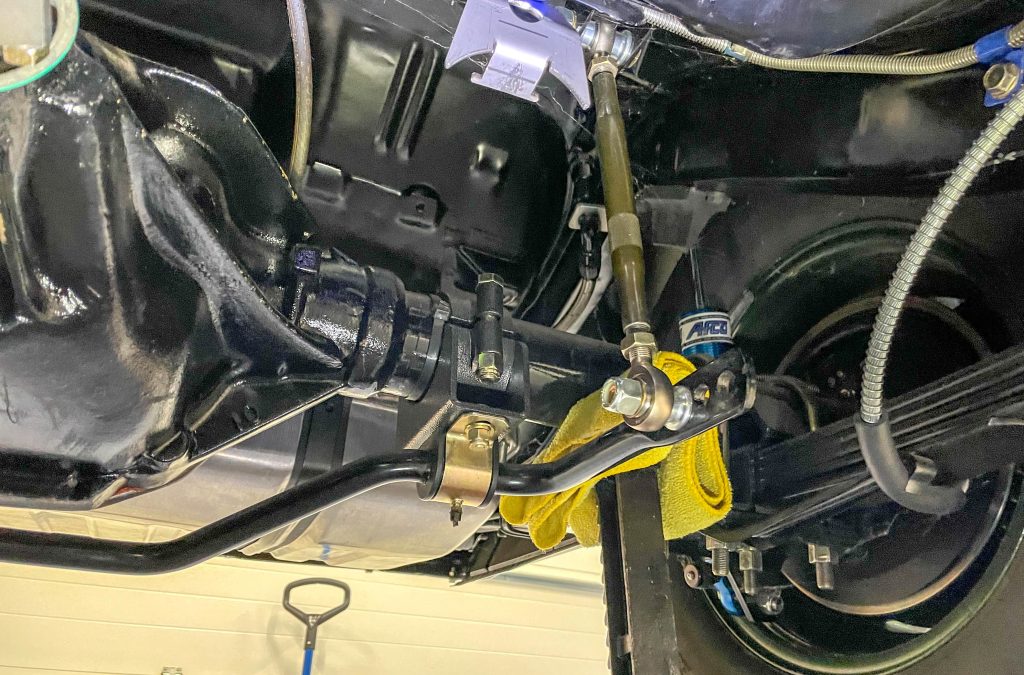

From right here, I attached the ARB hyperlinks by adjusting the size of the connecting hyperlinks in order that the rod ends rotate freely back and forth. It’s additionally a good suggestion to clock the rod ends with a purpose to keep away from binding. They need to stay “impartial.” Which means that whereas on a flat, degree floor (at working weight), it’s best to be capable of rotate them and really feel for pressure. In the event that they’re loaded, you possibly can really feel it. As soon as the ARB hyperlinks are adjusted, don’t make any chassis changes (except for shock settings) and don’t change the trip top. If the trip top adjustments, then the ARB settings should be revised. It’s attention-grabbing to notice that with some automobiles, you possibly can see a substantial distinction in trip top (on the respective corners) as soon as the suspension is adjusted.

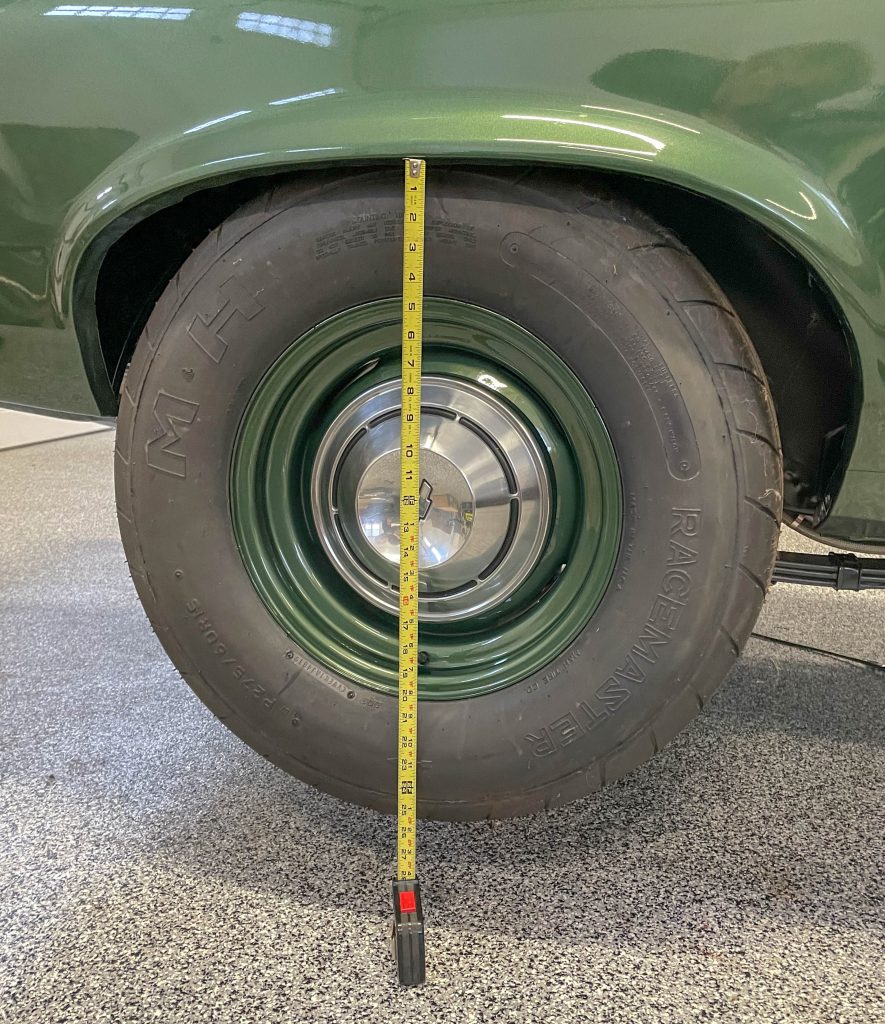

Out of curiosity, I eliminated the entire ballast from the automotive whereas it was nonetheless within the air after which I re-checked the trip top. Among the adjustments have been really marginal (1 / 4 inch or so), however empty, the appropriate rear was extra.
When understanding your baseline and tuning from that time ahead, understand that when considered from the entrance, the engine spins clockwise. An equal quantity of torque is utilized in the other way (counter clockwise) by means of the motor mounts to the chassis. That’s why automobiles with no correctly arrange ARB will at all times carry the motive force’s facet wheel and squash the passenger facet rear quarter panel downward. What makes this tougher to manage is the very fact torque your engine supplies isn’t constant. It varies with engine RPM. That’s why you possibly can’t use the ARB to preload the chassis. It’d work at one RPM degree however it may well have a severe impact upon the dealing with at one other. If you happen to completely want preload in a chassis, then do it with a suspension adjustment (4 hyperlink, ladder bar, traction bar) or if these aren’t obtainable, spring charge adjustments.
In the long run, each automotive is totally different. However all ought to have the baseline setup completed in a similar way. For a more in-depth have a look at how I established a baseline, try the pics under. Some (or all) of those concepts can give you the results you want.
