Early inside combustion engines had been very a lot influenced by steam know-how. The same old industrial steam engine had a horizontal cylinder driving a single-throw crankshaft carrying two large flywheels. For a few years, the valves controlling the movement of steam into and out of the cylinder had been slide valves pushed by easy eccentrics. Their reciprocating movement uncovered and lined ports that admitted or launched steam.
Limitations of Sliding Valves
Bettering steam engine effectivity required ever-higher steam temperature and strain. Quickly the restricted potential of accessible steam oils to forestall fast put on or scoring of slide valves turned an issue. A sort of valve freed from sliding contact was required—one thing slightly like a sink stopper operated remotely by a central rod. The sting of the round “stopper” was lower at roughly 45 levels to make it self-centering and its central rod—the valve stem—labored backwards and forwards in a carefully becoming valve information. Valve working mechanism pushed on the tip of the valve stem, lifting the round valve head off its seat. A spring saved the valve firmly seated when closed.
Throughout the high-pressure a part of the engine cycle such a valve could be closed and immobile, eliminating friction.
Excessive Exhaust Fuel Temperature
The exhaust gasoline temperature of early IC engines was very excessive as a result of their low compression ratios transformed so little of the combustion gasoline power into mechanical work. Steels gave up so simply in such warmth that two-piece valves had been tried with cast-iron heads and metal stems (they make stoves out of forged iron, proper?). Different experimenters tried to water-cool valves—with typically explosive outcomes.
The event of chopping software supplies within the late nineteenth century, in a position to retain their hardness at purple warmth, led to mass manufacturing from about 1910 and a revolution in metal-cutting. Such 8 % tungsten, 3 % chromium “excessive pace steels” had been quickly tried as exhaust valves.
One other strategy to the issue was to make use of the engine’s consumption air to chill the valve. This was carried out by having a single valve carry out each consumption and exhaust capabilities, with a “Y-valve” upstream from it that alternately linked the port to consumption or exhaust.
Throughout the homicidal years of World Warfare I, German liquid-cooled plane engines had been designed such that the center a part of every exhaust valve information was straight uncovered to engine cooling water. What modern-day Detroit hails as “strategic cooling”—positioning little nozzles contained in the engine’s cylinder head to direct the best water, recent from passing by the radiator, proper onto materials adjoining to exhaust valve seats and guides, additionally originated throughout WWI. Human ingenuity is like gravity—it by no means lets up.
Grinding the Valves
The poppet valve’s susceptibility to excessive temperature corrosion required frequent upkeep. This took the type of “grinding the valves” (utilizing an abrasive compound between valve and seat and rotating the valve backwards and forwards to grind them into clean and intimate contact). Engine operation steadily brought about pitting and erosion of valve sealing faces and seats, resulting in leakage and lack of compression, and tireless mechanics would periodically restore good sealing by “grinding the valves.” As a result of with early valve supplies this needed to be carried out each few weeks, the chauffeurs of rich homeowners had been manufacturing unit educated to carry out this and different upkeep operations to maintain vehicles prepared for service.
Stainless Steels Seem
A extra corrosion-resistant poppet valve materials got here alongside within the Nineteen Twenties—stainless steels consisting of iron alloyed with a hefty proportion of chromium plus a lesser quantity of nickel. Additions of chromium above 10.5 % outcome within the formation of a extremely corrosion-resistant floor layer of chromium oxide that’s self-healing.
Including roughly 8 % nickel permits the alloy to stay in austenitic kind (iron’s pure state when highly regarded) and offers workability and ductility. You could have seen stainless kitchenware bearing the label “18/8 stainless.” This has lengthy been an alloy for meals service, containing 18 % Cr and eight % Ni.
Alternate options to the Poppet Valve
The poppet valve had competitors within the type of sleeve valve or rotary valve schemes. The preliminary motivation for this was the annoying clicking of poppet valve working mechanism—cams and tappets. The press existed as a result of there needed to be some clearance within the valve drive to permit for the warmth growth of the valves themselves. If the valve prepare had been silenced by setting clearance between the components at zero, valve growth because the engine warmed up would destroy the valves’ seal by holding them barely open. In trendy car engines, self-adjusting hydraulic tappets actively preserve this clearance at zero, however earlier than their widespread use valve clatter was a function of motoring.
Associated: The Five-Angle Valve Job
In early days the Knight double sleeve valve conferred silent operation. Two sleeves, one becoming carefully inside the opposite, and the outer sleeve becoming carefully within the engine’s cylinder bore, had been labored by small cranks and con-rods, working at one-half crankshaft pace. One sleeve was ported to manage the consumption operate, the opposite to valve the exhaust. As a result of the precise energy of engines was fairly low on the time, heating of the exhaust sleeve by scorching gasoline was saved underneath management by the fixed sliding movement of the sleeves, warmth being transmitted pretty nicely throughout their oil movies.

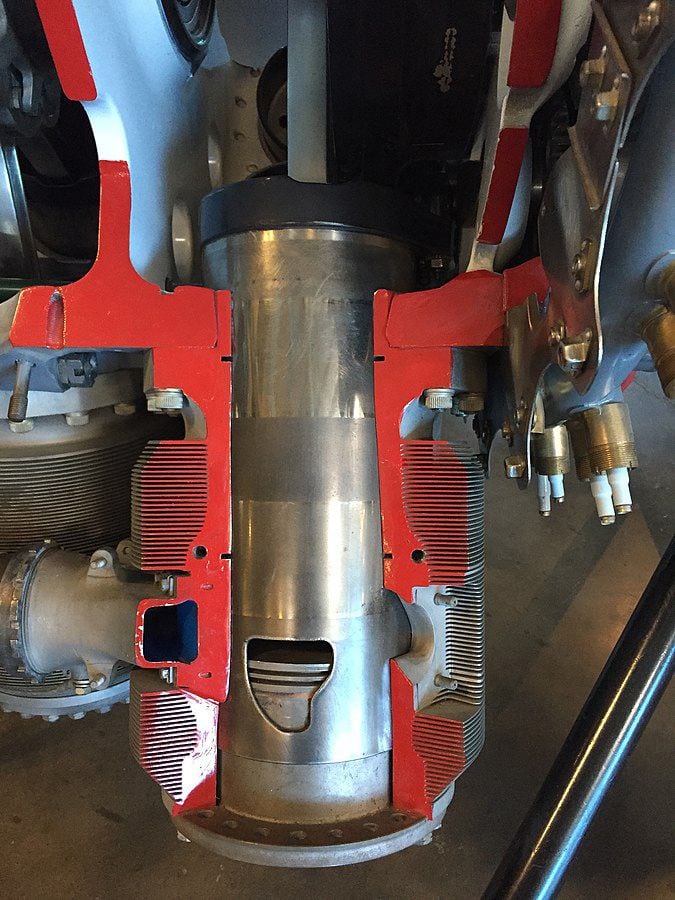

Later, the Burt-McCollum single sleeve valve provided a simplified mechanism. As an alternative of being pushed backwards and forwards, the only sleeve was pushed such that any level on its floor described a round movement. Consumption and exhaust ports within the cylinder wall had been located to line up with related ports within the sleeve to carry out the four-stroke cycle of consumption, compression, energy, and exhaust.
Powerful Situations for Poppet Valves—Giant Plane Engines
As plane piston engines had been developed in ever-larger sizes by the Nineteen Twenties and ‘30s, cylinders turned as giant as 200ci every, served by very giant valves whose dimension (as large as 3-1/4 inches head diameter) made them very tough to chill. Most of a valve’s cooling takes place by its seat, though some warmth does transfer up the stem. Consequently, the purpose of best temperature is between the 2—proper the place the stem begins to flare to kind the valve head. It was right here that many an plane engine exhaust valve broke in two, normally inflicting an engine wreck.
Valve working temperature was so essential to reliability in early days that it was frequent to drag a pipe off as an engine ran on the dyno to lookup the port. “Working black” was splendid however exhaust valve failure was one of many prime 4 causes of bike DNFs at Britain’s nice Brooklands Speedway (belt slippage and valve failure topped the checklist, adopted by spark plugs and tires).
Engineers continued to hunt alternate options to the poppet valve, in hope of eliminating the new valve from the combustion chamber. The ensuing cooler combustion chamber gave better resistance to detonation, permitting secure use of both elevated compression ratio or increased supercharger enhance.
Rotary Valves Tried in Bike Engines
Two concepts examined by bike producers within the Nineteen Thirties had been the Cross and Aspin rotary valves, each situated within the cylinder head. Prototype engines using these concepts had been in-built hope of Isle of Man success, however neither Velocette’s time-consuming Aspin mission nor a Norton strive of the Cross valve equaled the facility of these makers’ poppet-valve engines. As you may think about, sealing rotating valves and preserving them seizure-free required quantities of oil that threatened to foul spark plugs. Norton within the Nineteen Fifties examined a Manx-based 500 with a Cross rotary valve that produced aggressive energy, however demonstrated no actual benefit.
Walter Froede, one of many engineers behind the German NSU’s 1953–54 dominance of 125 and 250 GP roadracing, had through the battle developed a disc rotary valve system whose objective was to make a Naval torpedo engine extra compact than was potential with overhead poppet valves. NSU’s racing engines employed typical poppet valves pushed by DOHC.
In current many years there have additionally been whisperings of rotary valve experiments by F1 groups, none of which has seen the sunshine of day. Such experiments had been certainly pushed by the proposition that “If it’s potential to seal up a Wankel engine, it should be straightforward to seal a rotary valve system.” Once more, solely rumors, no outcomes.
Inner Liquid-Cooling of Valves
Valve coolants aside from water had been evaluated between the wars, with mercury as a primary alternative. Simply the valve’s stem was made hole at first, partly full of the liquid steel such that its movement up and down the stem because the valve carried out its cycle would are likely to equalize temperatures alongside the valve’s size.
Subsequent strive was salt-cooling (molten salts of assorted chemistry had for years been utilized in heat-treatment). The best investigator was air cooling pioneer S.D. Heron, who finally come across sodium as one of the best valve inside coolant. Actually hundreds of thousands of such valves had been produced for plane piston engines in WWII, persevering with into the late Nineteen Fifties.
Sleeve vs. Poppet
In Nineteen Twenties Britain, IC engine pioneer Harry Ricardo was singing the praises of the only sleeve valve. The rationale? There was no superhot exhaust valve within the combustion chamber, heating the getting into recent cost and pushing it towards the dreaded detonation. Each Bristol and Napier produced 1000’s of high-power sleeve-valve engines for WWII warplanes.
Regardless of that, the poppet-valve engine was saved by two innovations: Heron’s internally cooled exhaust valve with hole stem and head, and Delco worker Thomas Midgley’s discovery of the powerful anti-detonant effect of tetraethyl lead as a gas additive. Poppet-valve advocates (apologists?) insist to at the present time that the sleeve valve’s complexity was superfluous as a result of the 2 innovations above added as much as poppet valve engines not less than as highly effective and dependable as one of the best sleeve valvers.
Sodium-filled exhaust valves have additionally seen lengthy service in heavy-duty truck engines and a few hi-po auto engines as nicely.
Bike Exhaust Valve Issues
The lifetime of an exhaust valve could be onerous even within the smaller sizes fitted to bike engines. Norton had a lot hassle with exhaust valves (even when sodium-filled) of their air-cooled single-cylinder 500 Manx race engines that in 1953 they had been supplied with a spiral passage across the exhaust valve information, by which liquid was circulated to a small cooler affixed to the right-hand downtube.
Designed for AJS by Ike Hatch was the celebrated three-valve 7R variant, the 7R3. Though present-day three-valvers are constructed with two inlets and a single exhaust, Hatch gave the 7R3 two smaller exhaust valves and a single consumption. His causes had been twofold:
- On the time (1950–51) it was believed that finest consumption movement was offered by a single valve.
- Two smaller exhaust valves had been extra simply cooled than a single bigger one, and so provided better sturdiness.
BSA’s basic 500 Gold Star single, being air-cooled, additionally wanted assist in exhaust valve sturdiness. That firm determined that steel refractory sufficient to outlive as jet engine turbine blades could be a very good guess for exhaust valves—Nimonic 80A. This materials was not a metal in any respect, being largely nickel, with some chromium plus cobalt. Honda selected Nimonic-90 for the valves in its ultra-revving race engines of the Nineteen Sixties.
The Two-Stroke Interlude
Two-stroke engines occupied a large a part of the US bike market 1965–84. In such easy crankcase-scavenged engines, the downward motion of the piston on its energy stroke started to show the highest fringe of an exhaust port proper by the cylinder wall someplace within the vary of 80–90 levels ATDC. The recent exhaust gasoline, passing at sonic pace over the piston crown on its means out the exhaust port, transferred to it typically deadly warmth. Particularly in air-cooled two-strokes, the engine oil had to have the ability to operate at extraordinary temperature. The 2-stroke expertise could be regarded as a slide valve know-how that succeeded. That success was largely offered by use of a number of piston rings slightly than only a very carefully fitted piston.
The immense two-stroke diesels that energy worldwide commerce usually have 4 big poppet valves in every cylinder head, with the piston close to the tip of its downstroke uncovering 360 levels of directed fresh-charge ports. The biggest such engines develop greater than 100,000 hp.
The Sunny Uplands of the Current Day
The mix of liquid-cooled engines and the smaller paired exhaust valves of 4V four-stroke engines have made them almost proof against valve troubles. But scorching exhaust gasoline stays a harsh setting: one bike model had an issue a couple of years in the past with carbon accumulation within the combustion chambers of sure fashions. A crumb of indifferent carbon, taking place to be trapped between valve and seat, might sometimes end in an exhaust valve overheating sufficient from scorching gasoline leakage to quickly erode the valve materials. A valve I used to be proven regarded precisely as if attacked by a cutting-torch. Eliminating the carbon deposition restored regular valve reliability.

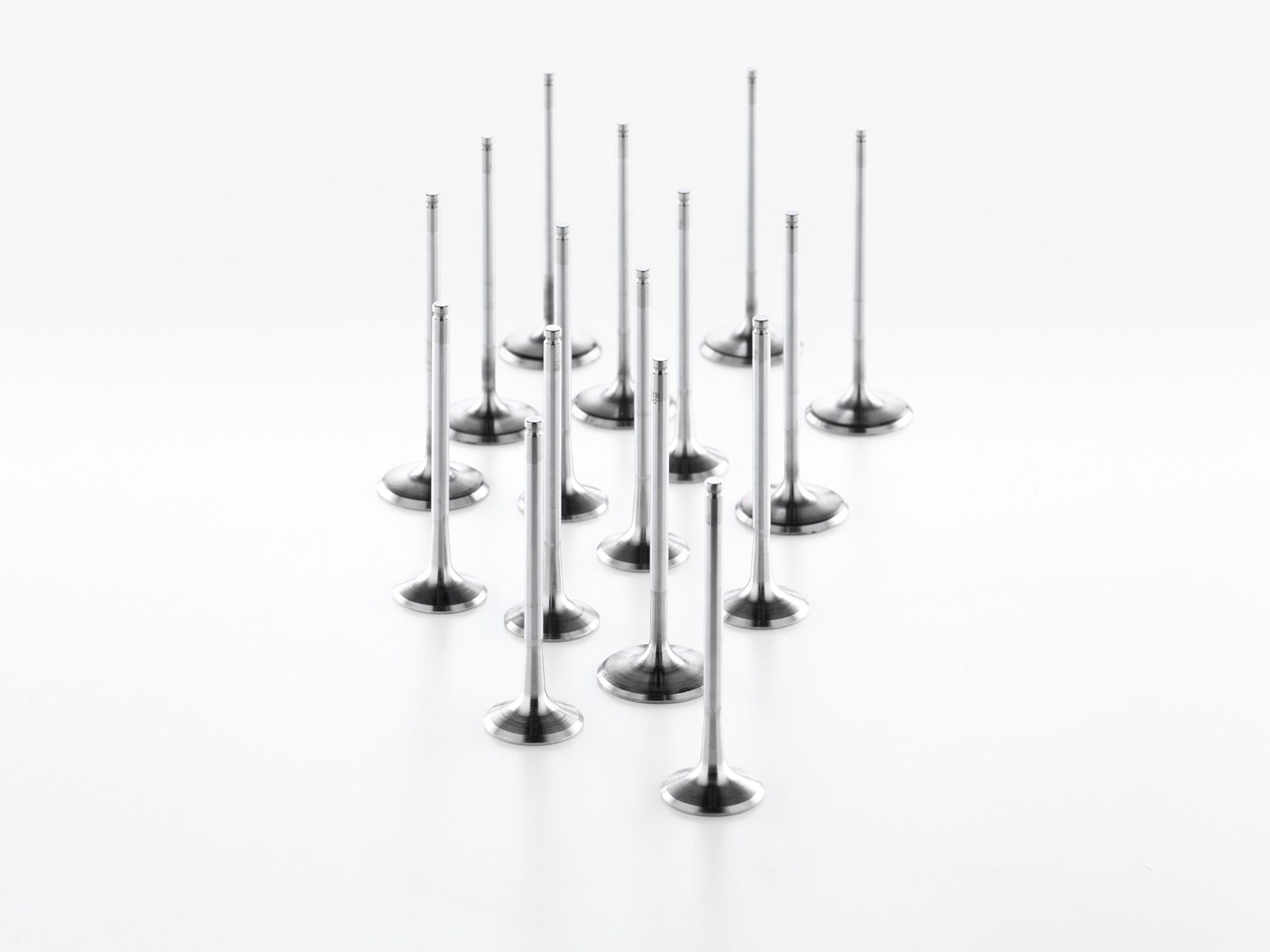

Titanium Valves
Round 1980 producers competing within the new US AMA Superbike collection started to guage titanium as valve materials. The motivation was titanium’s lighter weight—lower than 60 % of that of stainless steels—providing the potential of increased rpm operation with out valve float. However, Rob Muzzy maintained that in follow he had by no means truly confirmed this benefit.
Initially, solely titanium intakes had been used, with typical stainless exhaust valves. As water-cooling changed air, situations for titanium valves improved they usually began appearing in high-end manufacturing sportbike engines in addition to in Superbikes.
At present bike engine poppet valves are a comfortably mature know-how.
